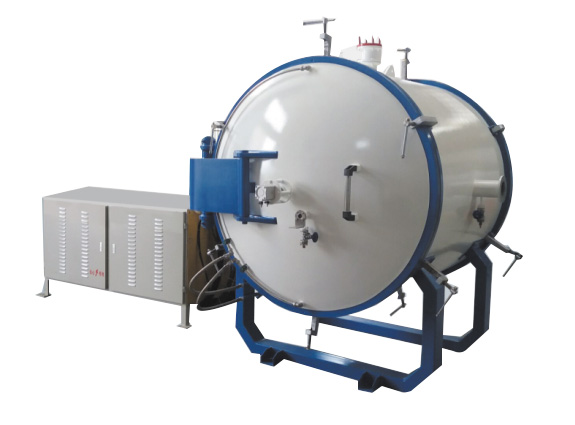

Lithium battery negative graphitizating furnace

Applicable in high temperature graphitization treatment of thermal conductive material graphite film,new materials, carbon and carbon materials, special ceramics industry.

Consult now

Introduction

Applicable in high temperature graphitization treatment of thermal conductive material graphite film,new materials, carbon and carbon materials, special ceramics industry.

Model Parameter		Lab usage	Production usage
Model Parameter		NTI-SML-54W	NTI-SML-98W	NTI-SML-182W	NTI-SML-432W	NTI-SML-576W	NTI-SML-1280W
Working size	mm	300×300×600	350×350×800	450×450×900	520×520×1600	600×600×1600	800×800×2000
Heating type	/	IF induction heating
Control type	/	Thyristor control or IGBT control ( optional )
HT zone capacity	L	54	98	182	432	576	1280
Loading weight	g	HT zone capacity × density (g/cm3)×1000 Remark：1L=1000cm3
Ultimate vacuum	Pa	20
IF power	Kw	150	200	250	350	500	700
Max. working temperature	℃	3000	3000	3000	2900	2900	2900
Usual working temperature	℃	2800	2800	2800	2800	2800	2800
Temperature unifomity	℃	±10	±10	±10	±10	±15	±15
Working environment	/	Vacuum or Ar, N2 atmosphere protection( micro positive pressure)

Feature:

1.The highest working temperature: 3000℃

2.Double layer alumina as keeping temperature material, good the heat insulation and fire resistance effect, less heat loss and quickly heating.

3.Equipping with high strength hard composite felt at the bottom of crucible, in order to ensure that the graphite crucible at high temperature level uniform force, it is 1.5 times the service life of similar products.

4.Unique design explosion-proof valve of furnace body safe and reliable.
