Resistance furnace

Current position：Home > Products > Resistance furnace

Vertical type vacuum carbonization furnace

Application for Thermally conductive film carbonization, glass-fiber carbonization, organic matter carbonization, powder carbonization and such as field, Can be combined with the use of the graphite furnace, used in new materials, carbon and carbon materials, special ceramics industry.

Consult now

Introduction

Application:
Application for Thermally conductive film carbonization, glass-fiber carbonization, organic matter carbonization, powder carbonization and such as field, Can be combined with the use of the graphite furnace, used in new materials, carbon and carbon materials, special ceramics industry.

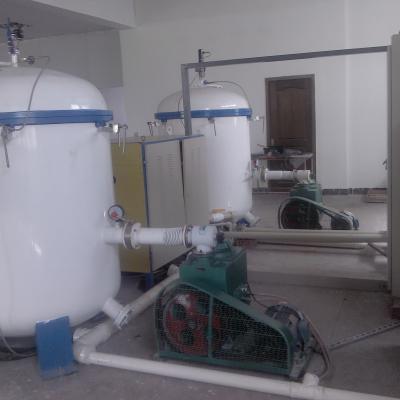

The picture of carbonization furnace:

[s]IMG_20120426_100714

Model Parameter		Lab usage	Production usage
Model Parameter		NTI-THL-4L	NTI-THL-9L	NTI-THL-57L	NTI-THL-100L	NTI-THL-206L	NTI-THL-339L
Working size	mm	?150*250	?200*300	?350*600	?400*800	?500*1050	?600*1200
Control process		Thyristor control or IGBT
Heating type	/	Resistance heating
HT zone capacity	L	4	9	57	100	206	339
Loading weight	g	HT zone capacity × density (g/cm3)×1000 Remark：1L=1000cm3
Ultimate vacuum	Pa	20
IF power	Kw	60	150	200	250	350	600
Input power	/	380V,50/60Hz
Max. working temperature	℃	1600	1600	1600	1600	1600	1600
Usual working temperature	℃	1500	1500	1500	1500	1500	1500
Temperature unifomity	℃	±5	±5	±5	±5	±5	±10
Working environment	/	Vacuum or Ar, N2 atmosphere protection( micro positive pressure)

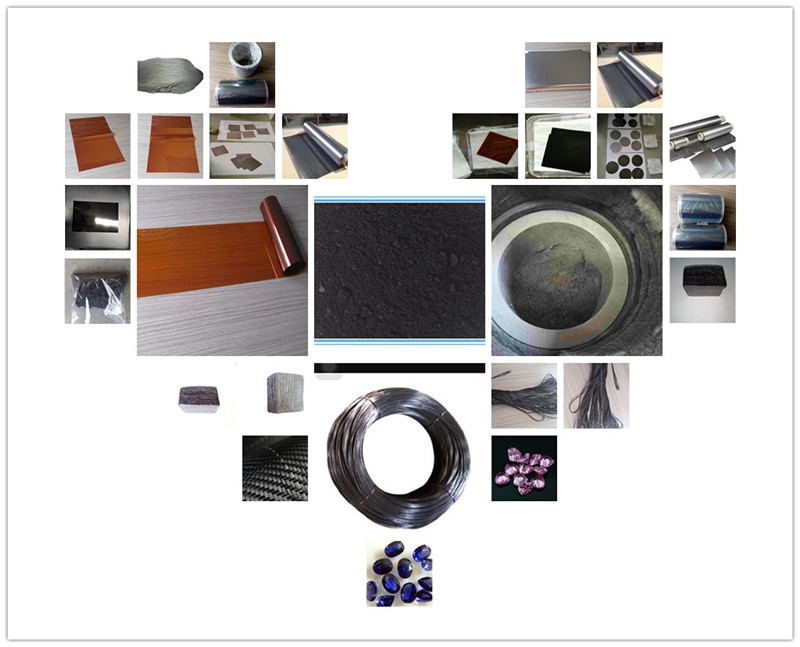

Raw material suitable for heating:

carbon material

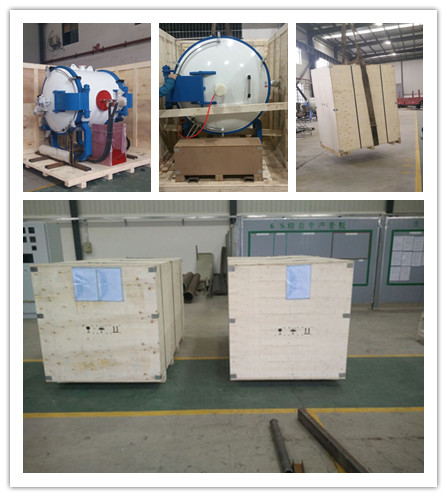

The packing mode:
